The annotations belong to the supplied reference. The simulation uses descriptive labels and fully modeled geometry.
A fully generated 3D environment built independently from the supplied road layout. The scene includes modeled highway decks, flyovers and supports, road markings, curbs, landscaped islands, trees, airport entry structures and vehicles.

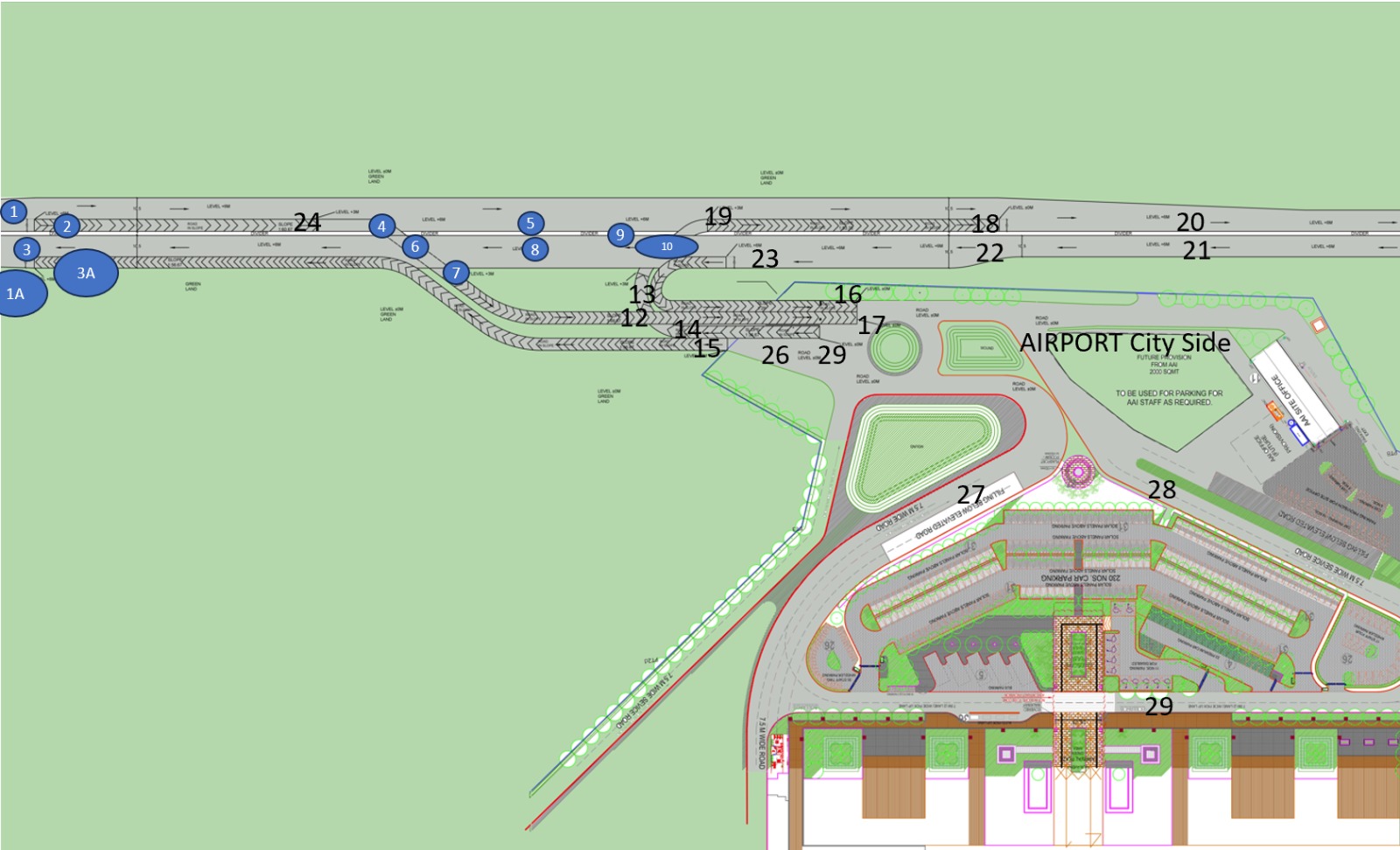

Both highway carriageways are at +6 m with three lanes each and left-hand traffic. Airport-bound cars descend under the opposite carriageway, emerge at +2.5 m and cross above the ground-level return road. The eastbound return stays at 0 m through both underpasses before climbing to the highway.
The gate is at 0 m. Airport routes carry cars and SUVs below 2.5 m in height. The plan supplies the interchange elevations; horizontal scale, construction dimensions, traffic demand and the +6 m terminal departure deck are illustrative. East corresponds to the right side of the drawing.
Choose Free flight camera to travel through the scene. Drag to look, use W A S D to move and Q / E to descend or climb. Hold Shift to move faster. Escape returns to orbit.
